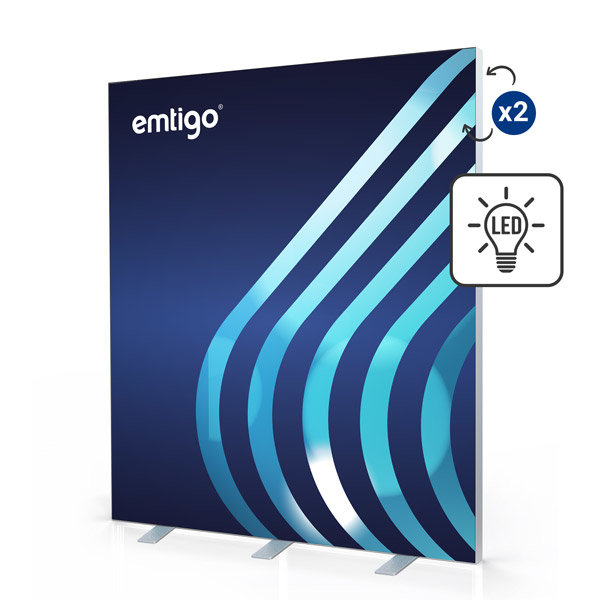

WISE FRAME LED Free-standing Illuminated Wall / Light Box 200x230 cm with Print

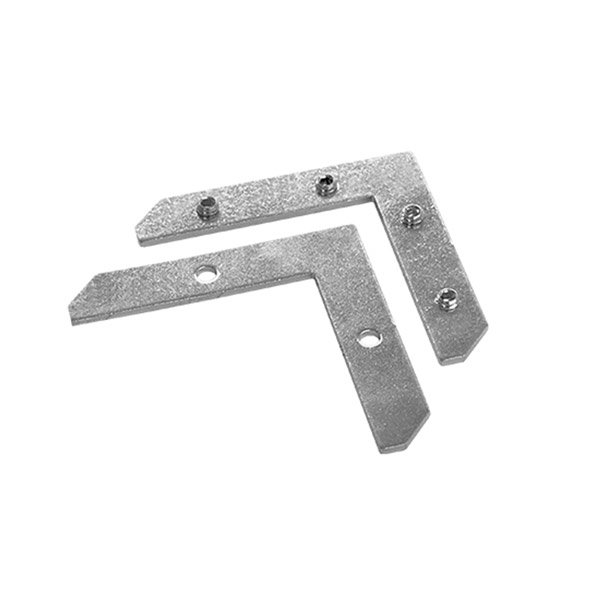

The 200x230 LED free-standing wall/light box must be assembled according to the instructions. First, connect all frame elements using the included Allen key, then tension the print by sliding the edges into the groove on the frame.

The graphics are printed on 260g backlight fabric using sublimation printing, or on Samba fabric using UV printing. The prints are exceptionally sharp with high color saturation, which, combined with the LED backlighting, creates a stunning visual impact.

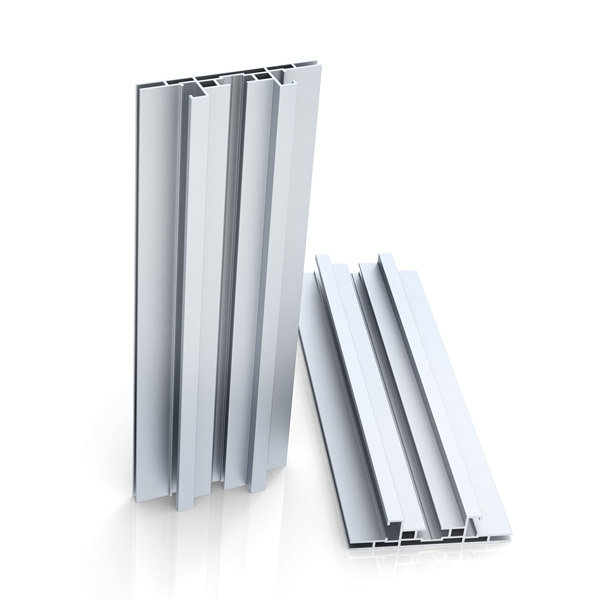

The frame is made of 10 cm aluminum profiles and features LED backlighting.

Print on material:

• 260g textile backlight fabric
• Samba fabric (rigid fabric – must be rolled onto a core for transport; handle with care to avoid creasing or cracking the material


Printing technique:

• Sublimation printing on 260g backlight fabric
• UV printing on Samba fabric (for backlit applications)


LED System Features:

• Modern, highly effective display system: A contemporary and visually striking exhibition system.
• Size: 200 cm x 230 cm (W x H).
• Weight: 28 kg.
• Frame Profile: 10 cm wide aluminum profile (10 cm depth).
• Frame Color: Silver aluminum finish.
• Graphic Attachment: Print finished with a sewn-in silicone edge gasket (SEG system).
• Assembly: Requires tools; an Allen key is included in the set.
• Maintenance: Simple and easy graphic replacement process.

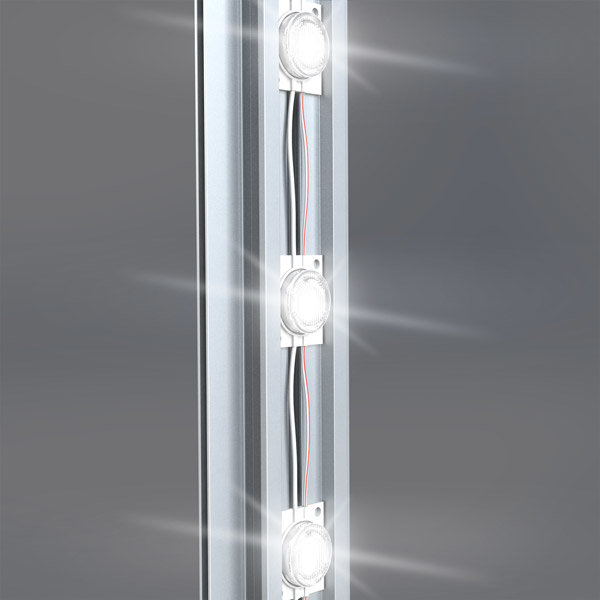

• LED System: Equipped with edge-lit LED modules mounted on both vertical profiles of the frame.
• Construction: Durable aluminum structure made of 10 cm aluminum profiles.
• Transportability: Profiles divided into two shorter sections for transport, connected with 4 straight connectors.
• Stabilization:

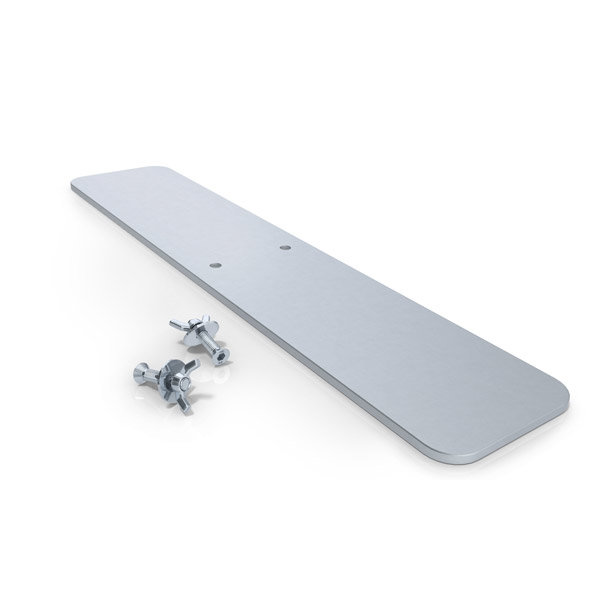

  • Feet: 3 large stabilizer feet (49x10 cm, 5 mm thickness) screwed to the bottom profile using two screws with wing nuts.
  • Stabilizer Bar: Single horizontal stabilizer bar (raw aluminum finish) to prevent bowing/sagging of the frame.
• Warranty: 2-year warranty on the structure/frame, 12 months on the print/graphic


The LED free-standing light box set includes:

• A print on backlight or Samba fabric finished with a sewn-in silicone edge gasket (SEG system)
• Aluminum structure/frame with integrated LED lighting
• 3 m power cord with plug
• Packaging: Frames are secured with foam profile protection on the edges, wrapped in foam film, and packed in a sturdy transport cardboard box – package dimensions: 125x30x18 cm

Technical Specifications:

• Power: 99W
• Light Color / Color Temperature: 6000K CCT (Correlated Color Temperature)
• Lifespan: ~ 50,000 h (hours)

Files for download:

• ASSEMBLY INSTRUCTIONS
• GRAPHIC TEMPLATE
